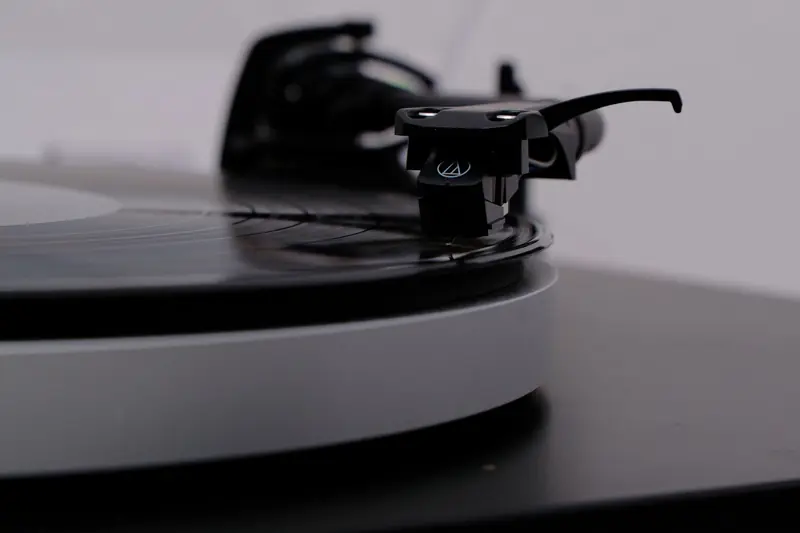

Cartridge alignment keeps the stylus as close to tangent to the groove as possible, reducing distortion and uneven record wear. Using a printed protractor, first set overhang (how far the stylus extends past the spindle) by sliding the cartridge in the headshell slots, then set zenith (the side-to-side angle) by rotating the cartridge until its sides run parallel to the protractor guidelines at each null point. Check both null points, go back and forth, and recheck tracking force afterward. Cartridge alignment is the quiet detail that separates a turntable that merely plays records from one that plays them well. When the stylus is aligned correctly, it sits in the groove at the ideal angle across as much of the record as possible, reducing distortion and uneven wear. When it is misaligned, you hear more sibilance and mistracking, especially on inner grooves, and your records wear faster than they should. The good news is that alignment is a skill anyone can learn with patience and a printed protractor.
Why alignment matters: the arc vs the straight cut
The core idea is that the stylus traces an arc as the tonearm swings across the record, while the record was cut by a lathe moving in a straight line. Alignment is the compromise that keeps the stylus as close to tangent to the groove as possible at two specific points on the record. A protractor gives you those two points, called null points, where you check that the cartridge body sits square in a printed grid. Between and around those points, the error is minimized.
Setting overhang
Start by setting overhang, which is how far the stylus extends past the spindle. You slide the cartridge forward or back in the headshell slots until the stylus lands correctly on the protractor grid. Then focus on zenith, the side-to-side angle of the cartridge body. With the stylus resting on a null point, rotate the cartridge slightly until its sides run parallel to the guidelines printed on the protractor. Lock the screws gently and recheck, because tightening can nudge the alignment.
Setting zenith at the null points
Work slowly and use good light and a loupe or magnifier if you have one, since the movements involved are small. Check both null points rather than just one, and go back and forth a couple of times, because adjusting one point often shifts the other slightly. When both points look square and the overhang is correct, you have a clean compromise that serves the whole record surface well.
Work slowly, then recheck tracking force
After alignment, confirm your tracking force and anti-skate are still set correctly, since handling the cartridge can disturb the tonearm balance. Play a record with strong vocals and listen to the inner grooves, where alignment errors show up most. If the sound is clean and the sibilance is under control, your patience paid off. Good alignment costs nothing but time and rewards you with clearer sound and longer record life.
Frequently asked questions
What does aligning a phono cartridge do? It keeps the stylus close to tangent to the groove across as much of the record as possible, which reduces distortion and sibilance (worst on inner grooves) and slows record wear.
Do I need a special tool to align a cartridge? A printed alignment protractor, which gives you the two null points where you check the cartridge sits square. A loupe or magnifier helps because the adjustments are small.
What is overhang on a turntable? How far the stylus extends past the spindle. You set it by sliding the cartridge forward or back in the headshell slots until the stylus lands correctly on the protractor grid.
Should I recheck anything after aligning the cartridge? Yes, tracking force and anti-skate, since handling the cartridge can disturb the tonearm balance. Then play a vocal record and listen to the inner grooves.
